Formats enables data elements to only accept data in a given format. For example a data element might need to accept social security numbers in the traditional xxx-xx-xxxx format or xxxxxxxxx. Or a data element might only accept dates as YYYYMMDD etc. Formats enable you to accomplish this. If the element data does not match the format an error will be generated.

Adding a Format

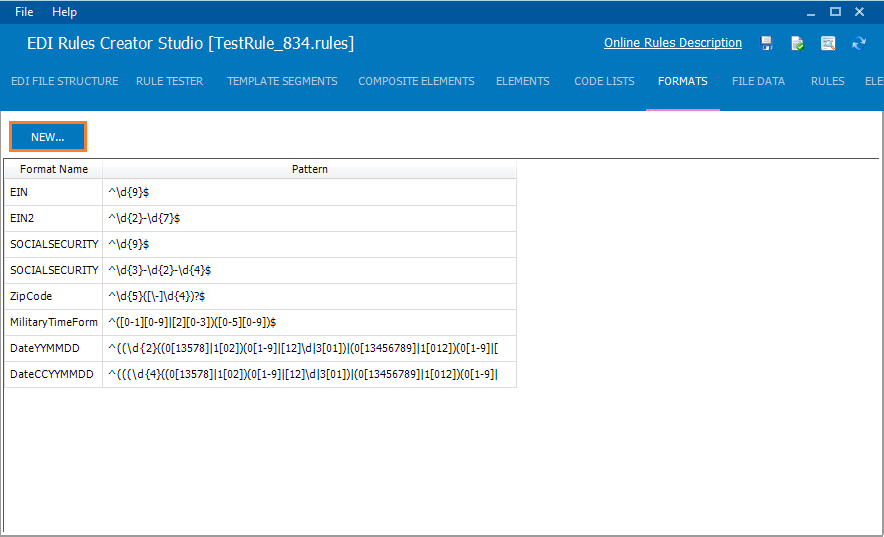

  • On the FORMATS tab in the main screen click on the NEW button

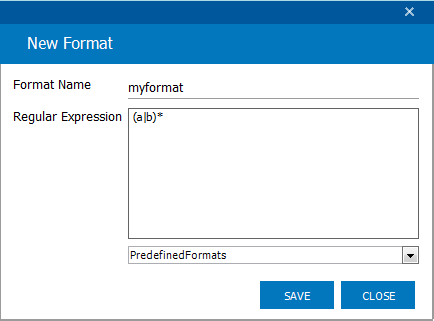

The New Format dialog will appear.

  • Enter a name for the new format in the Format Name field
  • Enter the Pattern for the format. The pattern must be a valid .net regular expression
  • You can select a pre-defined format from the Predefined Formats combo box
  • Click on the SAVE button to save the new format. Now you can assign this format to a data element

Applying a Format

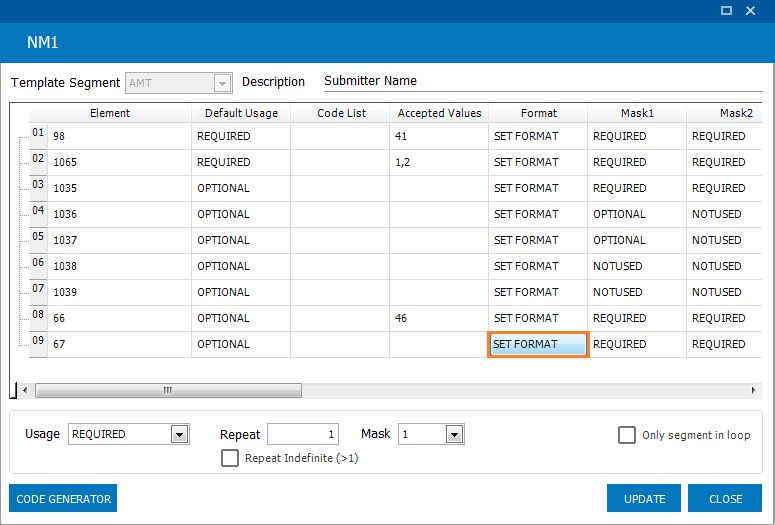

Select a loop segment from the EDI File Structure, right click, and select Edit Segment.

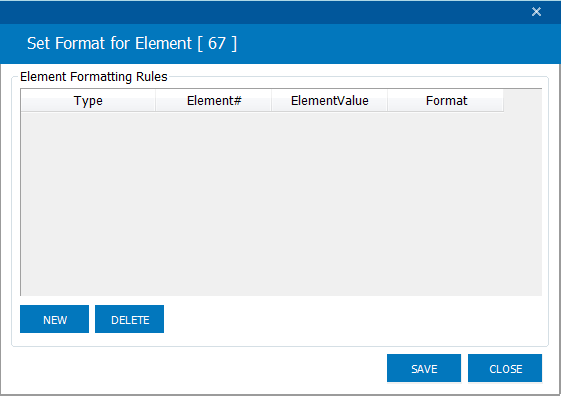

The Set Format screen will appear to enable you to configure the format for element 9 of segment NM1.

You will see 4 columns

Type: (Dependent or Independent)

  • Dependant means that the element’s format will depend on the value of another element in the segment. Independent means that the element’s format will apply to this element regardless.
  • Element#: If type is Dependent then this is the element ordinal # (1,2,3,4 etc) in the segment that the selected element’s format will depend on.
  • ElementValue: If type is Dependent then this is the value the element in Element# must have for the format to apply;
  • Format: This is just the element format. You can select it from a list or right click on the list to add your own.

Example

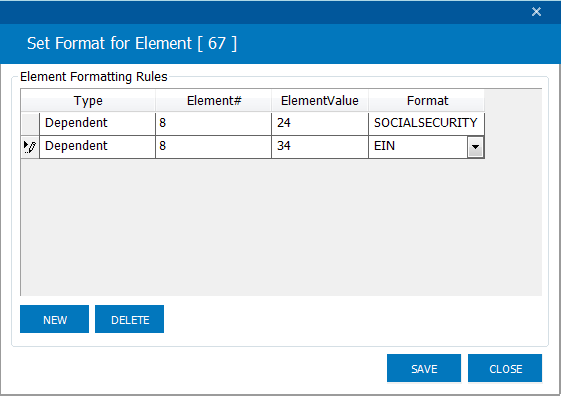

First Row

  • The Type is dependant so that means the format of element 9 will depend on the value of another element in the same segment
  • Element# has a value of 8 entered. This means that the format will depend on the value of element 8 in this segment
  • ElementValue has a value of 24. This means that element 9 will use the SOCIALSECURITY format when element 8 has a value of 24

Second Row

  • The Type is dependant so that means the format of element 9 will depend on the value of another element in the same segment
  • Element# has a value of 8 entered. This means that the format will depend on the value of element 8 in this segment
  • ElementValue has a value of 34. This means that element 9 will use the EIN format when element 8 has a value of 34.

Click SAVE to save the element format
